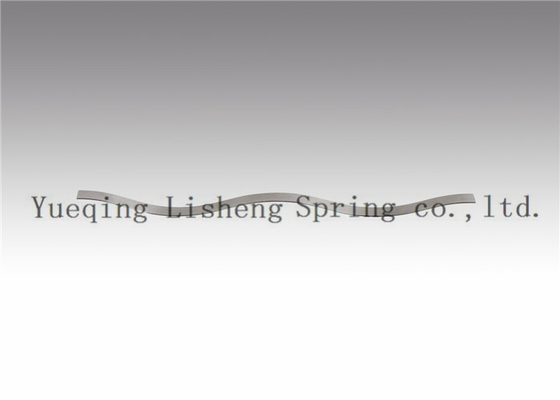

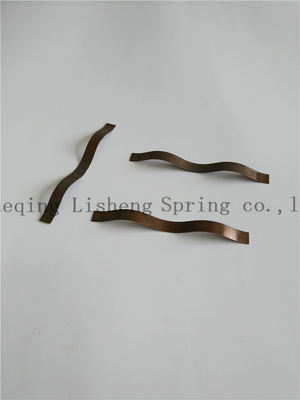

LS Series Wave Springs Inch Linear Springs

LS Series Wave Springs Inch Linear Springs
LS Series Wave Springs Inch Linear Springs LS Series Wave Springs Inch Linear Springs

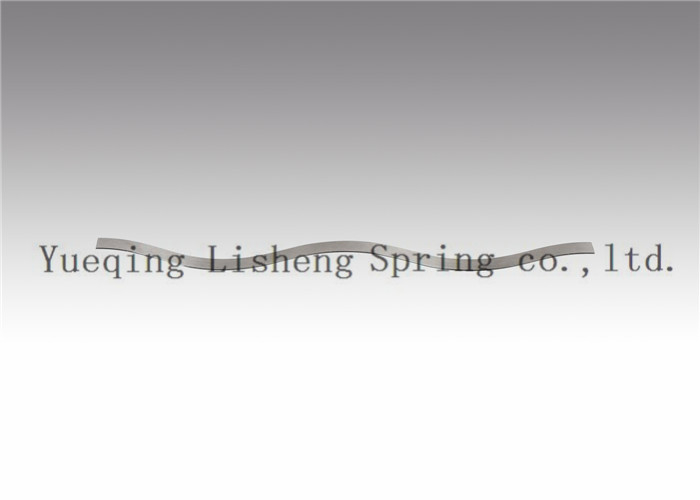

Large Image :  LS Series Wave Springs Inch Linear Springs

Product Details:
Place of Origin: CHINA
Brand Name: lisprings
Certification: ISO9001 TS16949
Model Number: LS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Bulk packaged or Customize
Delivery Time: 7 work days
Supply Ability: 10000000
Contact Now
Detailed Product Description
Name: LS Series Wave Springs Inch Linear Springs Size: 5mm-1000mm
Tooling Charge: Free Used For: Bearing
Material: Carbon Steel Or Stainless Steel Stock: More Than 2000 Types
Highlight:

spring strip

,

wave washer for bearing

LS Series Wave Springs Inch Linear Springs



Description:



Linear Springs are a continuous wave formed (marcelled) wire length produced from spring tempered materials. They act as a load bearing device having approximately the same load/deflection characteristics as a wave spring. Axial pressure is obtained by laying the linear spring flat in a straight line.





Surface Finish



1, Coating :nickel , zinc,chrome,Dacromet,teflon,silver ,gold etc.

2,Anodized : any color , can according the Panton card .

3,Sand blast,Powder coating

4,Painting

5,Laser marking,printing .





Good Service



We will respond to you within 24 hours. We can manufacture nonstandard parts according to your drawings. And we offer best after sale service.



LOW PRICE:



The price of our products is reasonable and competitive than other manufactures.



RICH EXPERIENCE:



We have been engaged in the springs for 25 years. Our company had good reputation with customers from American, Europe and Australia etc. We also have a good team for sale and quality control.





Specification:



Part Number Number of Waves Thickness(inch) Width(inch) Length(inch) Free Height(inch) Load(lb) Work Height(inch) Spring Rate(inch/lb)
LS12188-1 1 0.012 0.188 1.5 0.225 1.5 0.125 11
LS12188-2 2 0.012 0.188 3 0.225 5.6 0.125 91
LS12188-3 3 0.012 0.188 4.5 0.225 10.4 0.125 136
LS12188-4 4 0.012 0.188 6 0.225 14.8 0.125 182
LS12250-1 1 0.012 0.25 1.5 0.225 2.2 0.125 15
LS12250-2 2 0.012 0.25 3 0.225 7.8 0.125 121
LS12250-3 3 0.012 0.25 4.5 0.225 13.9 0.125 181
LS12250-4 4 0.012 0.25 6 0.225 19.8 0.125 242
LS12312-1 1 0.012 0.312 1.5 0.225 2.9 0.125 19
LS12312-2 2 0.012 0.312 3 0.225 10.2 0.125 151
LS12312-3 3 0.012 0.312 4.5 0.225 17.6 0.125 226
LS12312-4 4 0.012 0.312 6 0.225 26 0.125 302
LS12375-1 1 0.012 0.375 1.5 0.225 3.5 0.125 23
LS12375-2 2 0.012 0.375 3 0.225 11.3 0.125 181
LS12375-3 3 0.012 0.375 4.5 0.225 20.1 0.125 272
LS12375-4 4 0.012 0.375 6 0.225 25.2 0.125 362
LS20188-1 1 0.02 0.188 1.875 0.25 3 0.15 27
LS20188-2 2 0.02 0.188 3.75 0.25 11.4 0.15 215
LS20188-3 3 0.02 0.188 5.625 0.25 23.5 0.15 323
LS20188-4 4 0.02 0.188 7.5 0.25 32.5 0.15 431
LS20250-1 1 0.02 0.25 1.875 0.25 5.6 0.15 36
LS20250-2 2 0.02 0.25 3.75 0.25 17.6 0.15 286
LS20250-3 3 0.02 0.25 5.625 0.25 31.7 0.15 430
LS20250-4 4 0.02 0.25 7.5 0.25 44.9 0.15 573
LS20312-1 1 0.02 0.312 1.875 0.25 6 0.15 45
LS20312-2 2 0.02 0.312 3.75 0.25 20.5 0.15 357
LS20312-3 3 0.02 0.312 5.625 0.25 34.9 0.15 536
LS20312-4 4 0.02 0.312 7.5 0.25 50.8 0.15 715
LS20375-1 1 0.02 0.375 1.875 0.25 6.4 0.15 54
LS20375-2 2 0.02 0.375 3.75 0.25 23.3 0.15 430
LS20375-3 3 0.02 0.375 5.625 0.25 52 0.15 644
LS20375-4 4 0.02 0.375 7.5 0.25 74.5 0.15 859
LS25188-1 1 0.025 0.188 2.25 0.275 3.5 0.175 30
LS25188-2 2 0.025 0.188 4.5 0.275 15.4 0.175 243
LS25188-3 3 0.025 0.188 6.75 0.275 27.9 0.175 365
LS25188-4 4 0.025 0.188 9 0.275 42.5 0.175 487
LS25250-1 1 0.025 0.25 2.25 0.275 6.5 0.175 40
LS25250-2 2 0.025 0.25 4.5 0.275 21.7 0.175 324
LS25250-3 3 0.025 0.25 6.75 0.275 34.7 0.175 486
LS25250-4 4 0.025 0.25 9 0.275 50.5 0.175 647
LS25312-1 1 0.025 0.312 2.25 0.275 6.6 0.175 51
LS25312-2 2 0.025 0.312 4.5 0.275 24 0.175 404
LS25312-3 3 0.025 0.312 6.75 0.275 43.2 0.175 606
LS25312-4 4 0.025 0.312 9 0.275 62 0.175 808
LS25375-1 1 0.025 0.375 2.25 0.275 7.7 0.175 61
LS25375-2 2 0.025 0.375 4.5 0.275 29.4 0.175 486
LS25375-3 3 0.025 0.375 6.75 0.275 53.8 0.175 728
LS25375-4 4 0.025 0.375 9 0.275 76.9 0.175 971
LS38188-1 1 0.038 0.188 2.625 0.3 7.5 0.2 67
LS38188-2 2 0.038 0.188 5.25 0.3 25 0.2 538
LS38188-3 3 0.038 0.188 7.875 0.3 61 0.2 808
LS38188-4 4 0.038 0.188 10.5 0.3 90 0.2 1077
LS38250-1 1 0.038 0.25 2.625 0.3 11.9 0.2 89
LS38250-2 2 0.038 0.25 5.25 0.3 45.7 0.2 716
LS38250-3 3 0.038 0.25 7.875 0.3 74.3 0.2 1074
LS38250-4 4 0.038 0.25 10.5 0.3 111.5 0.2 1432
LS38312-1 1 0.038 0.312 2.625 0.3 9.9 0.2 112
LS38312-2 2 0.038 0.312 5.25 0.3 49.3 0.2 893
LS38312-3 3 0.038 0.312 7.875 0.3 88 0.2 1340
LS38312-4 4 0.038 0.312 10.5 0.3 160.7 0.2 1787
LS38375-1 1 0.038 0.375 2.625 0.3 16.9 0.2 134
LS38375-2 2 0.038 0.375 5.25 0.3 61.7 0.2 1074
LS38375-3 3 0.038 0.375 7.875 0.3 105 0.2 1611
LS38375-4 4 0.038 0.375 10.5 0.3 153 0.2 2148
LS45188-1 1 0.045 0.188 3 0.325 9 0.225 75
LS45188-2 2 0.045 0.188 6 0.325 36 0.225 599
LS45188-3 3 0.045 0.188 9 0.325 65 0.225 898
LS45188-4 4 0.045 0.188 12 0.325 89 0.225 1198
LS45250-1 1 0.045 0.25 3 0.325 12.5 0.225 100
LS45250-2 2 0.045 0.25 6 0.325 42.5 0.225 797
LS45250-3 3 0.045 0.25 9 0.325 83 0.225 1195
LS45250-4 4 0.045 0.25 12 0.325 120.5 0.225 1593
LS45312-1 1 0.045 0.312 3 0.325 14.7 0.225 124
LS45312-2 2 0.045 0.312 6 0.325 60.3 0.225 994
LS45312-3 3 0.045 0.312 9 0.325 108.9 0.225 1491
LS45312-4 4 0.045 0.312 12 0.325 131 0.225 1988
LS45375-1 1 0.045 0.375 3 0.325 20.4 0.225 149
LS45375-2 2 0.045 0.375 6 0.325 73.1 0.225 1195
LS45375-3 3 0.045 0.375 9 0.325 133.5 0.225 1792
LS45375-4 4 0.045 0.375 12 0.325 190 0.225 2390
LS62188-1 1 0.062 0.188 3.375 0.35 14.3 0.25 138
LS62188-2 2 0.062 0.188 6.75 0.35 67.5 0.25 1100
LS62188-3 3 0.062 0.188 10.125 0.35 105.5 0.25 1650
LS62188-4 4 0.062 0.188 12 0.35 159.5 0.25 2200
LS62250-1 1 0.062 0.25 3.375 0.35 22.5 0.25 183
LS62250-2 2 0.062 0.25 6.75 0.35 104 0.25 1463
LS62250-3 3 0.062 0.25 10.125 0.35 161 0.25 2195
LS62250-4 4 0.062 0.25 12 0.35 234 0.25 2926
LS62312-1 1 0.062 0.312 3.375 0.35 27.8 0.25 228
LS62312-2 2 0.062 0.312 6.75 0.35 104 0.25 1826
LS62312-3 3 0.062 0.312 10.125 0.35 174.5 0.25 2739
LS62312-4 4 0.062 0.312 12 0.35 262.5 0.25 3652
LS62375-1 1 0.062 0.375 3.375 0.35 42 0.25 274
LS62375-2 2 0.062 0.375 6.75 0.35 139.5 0.25 2195
LS62375-3 3 0.062 0.375 10.125 0.35 240 0.25 3292
LS62375-4 4 0.062 0.375 12 0.35 353 0.25 4389
